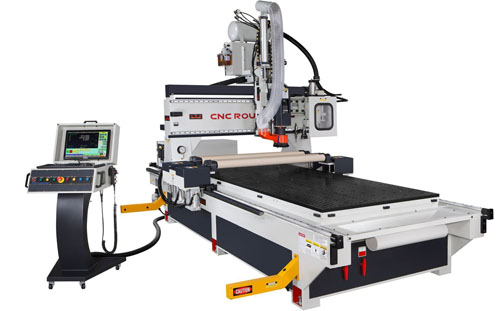

CNC 4' * 8' MACHINING CENTER

Product No : LH-481-SA
CNC 4' * 8' MACHINING CENTER
    Inquiry
    Product Description

    proimages/video.png

    • Suitable for machining complex parts of various types of products.
    • Typical applications: cabinet doors, solid wood doors, computer desks and panel type furnitur.
    • Roller hold down system can make plywood flat when processing.
    ModelLH-481-SA
    Table size 1250*2470m/m
    Max. working area 1250*2470m/m
    Stroke X
    Servos Motor    		 2470m/m
    1.5KW*2PCS + Planetary Reducers
    Stroke Y
    Servos Motor    		 1250m/m
    1KW+ Planetary Reducers
    Stroke Z
    Servos Motor    		 250 m/m
    1KW
    Working height Max. 250m/m
    Rapid X & Y Axis 55 M/min
    Rapid speed Z Axis 20M/min
    Spindle speed 1000 ~ 24000rpm
    Tool holder taper ISO #30: 4PCS
    Tool change mode & capacity 8tools, plastic or BT30-8T
    Collet taper ER-32:4PCS
    Spindle power & Q'ty HSD 9 KW ( 12HP) *1
    Vacuum Zone 2 zones
    Vacuum pump power 15HP (Trundean)
    Collet for router bits, ER-32: Ø12mm: 2PCS; Ø16mm: 2PCS
    Controller Intek control system
    2.5D Nature Cam / CAD ( Optional )
    Tool kits 1set
    Operation manual 1set
    Measure router bit of tool 1pc
    Not including to go to foreign country to set up machine, if need to set up machine, the buyer should Pay air-ticket and hotel fee ( Optional )



    • Minimum Order : Negotiable
    • Branded Product, Buyer's Label Offered
    • TEL: 886-4-25284431 / 886-4-25204443 / 886-4-25235406
    • FAX: 886-4-25289411 / 886-4-25273423
