Auto. Hydraulic Double End Door Frame Tenoners Machine

Product No : LW--4500
Auto. Hydraulic Double End Door Frame Tenoners Machine
    Inquiry
    • Machine max. working length: 2.5M ~ 3.0M
      max. working width: 230mm
    • Heavy rigid design with linear guide way and ball screw length setting by digital readout controller to accurately.
    • Fully hydraulic control system ensure does not working stability.
    • Electronic with Program Control System control panel unit operate.
    • Double end tenoner can be done two end in a time.

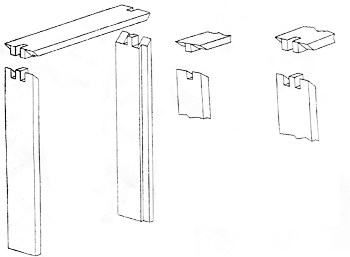

    proimages/Door-Jamb-Machine/LW-3000.gif

    ModelLW-4500
    Max. working length 600 ~ 3000mm
    Max. working length 90mm
    Max. working width 230mm
    Spindle motor 10HP*4
    Hydraulic pump motor 3HP*1
    Spindle diameter Ø40mm
    Spindle speed 5000rpm
    Machine size (L*W*H) 5700*1150*2100mm
    Packing size (L*W*H) 5900*1400*2200m/m
    N.W./G.W. 2300/2700KGS
    • Minimum Order : Negotiable
