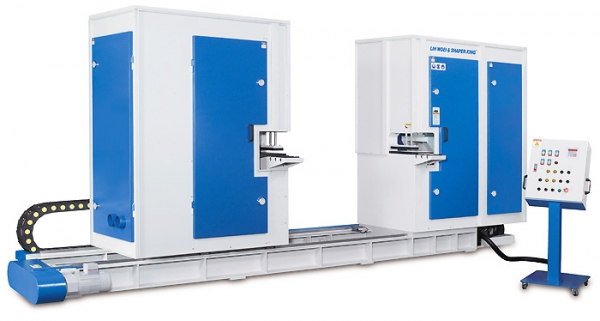

Auto. Hydraulic Double End Tenoning Machine

Product No : LW-4500
Auto. Hydraulic Double End Tenoning Machine
    Inquiry
    Product Description

    proimages/video.png

    ModelLW-4500
    Table size: 2,465*3075m/m Max. working area: 2,465*3075m/m
    Stroke X Axis : 3100m/m; Servo motor: 2KW*2 Stroke Y Axis : 2,470m/m, Servo motor:
    1.5KW+ Planetary Reducers
    Stroke Z Axis: 400m/m; Servo motor: 1KW Working height: Max. 400m/m
    Rapid speed X & Y Axis: 55M/min Rapid speed Z Axis: 20M/min
    Spindle speed: 1000 ~ 24000RPM
    Tool holder taper: ISO-30 Shaft Collet taper: ER-32
    Spindle power & Q’ty : 12HP (HSD 9.0kw) Vacuum pump power: 10HP (Trenden )
    Vacuum zone: 6 zones Controller: Intek or LNC control system



    Standard Accessories:

    Tool holder for router bits: ER-32, ISO-30:4pcs Collet for router bits, ER-32: φ12mm: 2pcs
    Collet for router bits: φ16m/m: 2pcs Tool kits, Operation Manual: 1set
