Product No : LW-3000-A

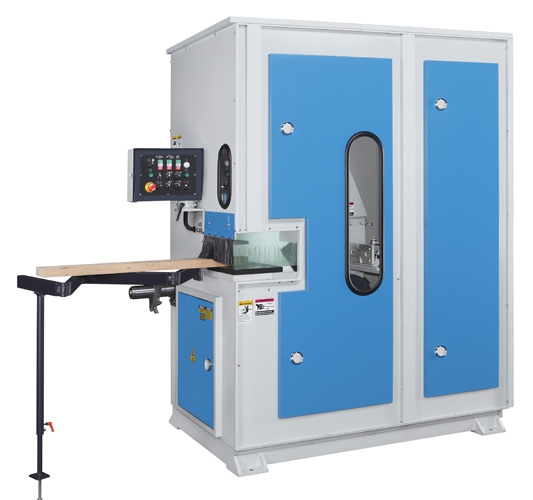

Auto. Hydraulic Single End Tenoning Machine for Door & Window Frames
    Product Description

    proimages/video.png

    Product Introduction

    Machine can process first end tenoning at first time, after changed cutter then machine can process second end tenoning at second time.

    MODELLW-3000-A
    Max. working thickness 90mm
    Max. working width 230mm
    Max. cutter of diameter 260mm
    Spindle motor 10HP*2
    Hydraulic pump motor 2HP*1
    Spindle diameter Φ40mm
    Spindle speed 5000rpm
    Machine size ( L*W*H) 1700*1000*2050mm
    Packing size ( L*W*H) 1850*1150*2200mm
    N.W./G.W. 1100/1300KGS
    • Minimum Order : Negotiable
    • Branded Product, Buyer's Label Offered
    • TEL: 886-4-25284431 / 886-4-25204443 / 886-4-25235406
    • FAX: 886-4-25289411 / 886-4-25273423
