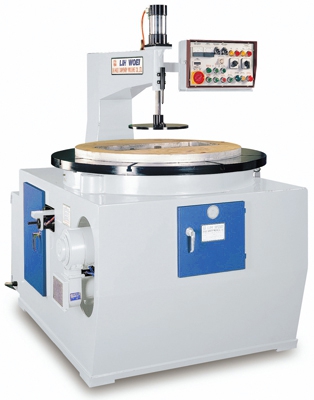

Auto Copy Inner Shaping Machine

Product No : LH-920
Auto Copy Inner Shaping Machine
    Inquiry
    Product Introduction

    wood working machine , shaping machine , copy shaper.

    • This copy shaping machine is a breakthrough from traditional manual inner shaping processes. The working speed of this copy shaping machine is as high as a CNC copying machine, but with a more economical price. It reduces initial investment and production costs.
    • Suitable for inner shaping of square, round and irregular workpieces, such as toilet seat covers, clock shells, picture frames and similar products.
    ModelLH-920LH-23
    Cutting Capacity 6" ~ 36" 1" ~ 23"
    Round Disc Dia. 1300mm 880mm
    Table Diameter 920mnm Large - 585mm ; Small - 410mm
    Cutter Diameter 100mm 5-100mm
    Spindle Diameter ø30mm 30mm
    Spindle Speed 9,000rpm 9,000 RPM
    Cutter Head Drive Motor 10HP 7 - 1/2 HP
    Table Drive Motor 2HP ( D.C. motor) 2 HP
    Net Weight (kg) 1,960kgs 1,120 kgs
    Gross Weight (kg) 2,200kgs 1,200 kgs
    Machine Size (mm) 1,890*1,460*2,015m/m 1,397 x 1,168 x 1,910
    Packing Dimensions (mm) 2,010*1,570*2,250m/m 1,549 x 1,270 x 2,200



    • Minimum Order: Negotiable
    • TEL: 886-4-25284431 / 886-4-25204443 / 886-4-25235406
    • FAX: 886-4-25289411 / 886-4-25273423
