Product No : LH-4045-LH-4045DR
Product Introduction
PATENT NO. D127772

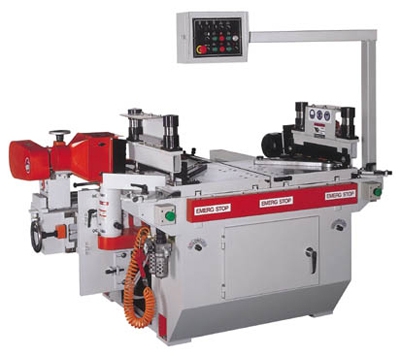

LH - 4045 - DR: Auto end match shaper.
LH - 4045: Automatic end match shaper with dowel drilling.
| Model | LH-4045 | LH-4045-DR |
|---|
| Max. cutting length (left or right) |
20" |
20" |
| Max. cutting length (two table together) |
40" |
40" |
| Max. cutting length (45 degree) |
30" |
30" |
| Max. cutting width |
13- 3/4" |
13- 3/4" |
| Spindle under unt |
4" |
4" |
| Max. cutter size |
5" |
5" |
| Spindle diameter |
1-1/4" |
1-1/4" |
| Spindle length |
6" |
6" |
| Spindle speed |
9000 rpm |
9000 rpm |
| Main motor |
5 HP * 2 |
5 HP * 2 |
| Drill motor |
N / A |
1 HP * 2 |
| Dust hood diameter |
5" * 2 |
5" * 2 |
| N.W. / G.W. |
2610 LBS / 3230 LBS |
2850 LBS / 3460 LBS |
