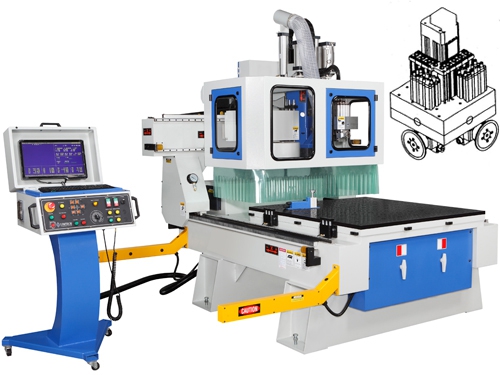

CNC 4' * 4' MACHINING CENTER
Product No : LH-442
- Suitable for machining complex parts of various types of products.
- Typical applications: cabinet doors, solid wood doors, computer desks and panel type furnitur
| Model | LH-422 |
|---|---|
| Table size | 1245*1245m/m |
| Max. working area | 1250*1250m/m |
| Stroke X Servos Motor |
1250 m/m 2KW*2PCS + Planetary Reducers |
| Stroke Y Servos Motor |
1250m/m 1KW+ Planetary Reducers |
| Stroke Z Servos Motor |
250 m/m 1.5KW |
| Working height | Max. 250m/m |
| Rapid X & Y Axis | 55 M/min |
| Rapid speed Z Axis | 20M/min |
| Spindle speed | 1000 ~ 24000rpm |
| Tool auto change mode & capacity | ATC 8pcs |
| Tool holder taper | ISO #30: 4PCS |
| Collet taper | ER-32:4PCS |
| Spindle power & Q'ty | 12HP (HSD 9kw) * 1pc |
| Vacuum Zone | 2 zones |
| Vacuum pump power | 10HP (Trundean) |
| 9 boring head in L shape of motor power | 2HP |
| Collet for router bits, ER-32: Ø12mm: 2PCS; Ø16mm: 2PCS | |
| Controller | Intek control system |
| ART CAM/ CAD ( optional) | |
| HSD 1.7KW:C-Axis of X, Y 90drgree Saw | 1PC |
| Tool kits | 1set |
| Operation manual | 1set |
| Not including to go to foreign country to set up machine, if need to set up machine, the buyer should Pay air-ticket and hotel fee ( Optional ) | |
- Minimum Order : Negotiable
- Branded Product, Buyer's Label Offered
- TEL: 886-4-25284431 / 886-4-25204443 / 886-4-25235406
- FAX: 886-4-25289411 / 886-4-25273423
