Product No : LH-28TC-LH-40TC
Product Description
Product Introduction

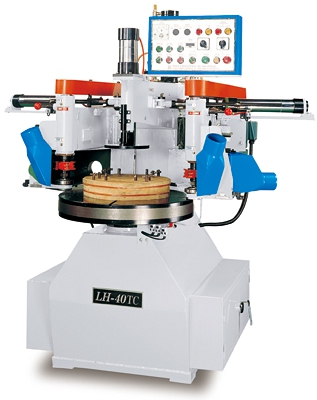

Auto Copy Shaping Machine with two cutter heads. Sanding attachment is available for double cutter head models. ( optional)
| Model | LH-28TC | LH-40-TC |
|---|
| Cutting capacity |
3" ~ 28" |
3" ~ 40" |
| Max. Cutting Length to Width Ratio |
12.5" x 25" |
15" * 36" |
| Table Diameter |
ø18 |
ø27" |
| Table Speed |
1.5-6 RPM |
1.5-6 RPM |
| Spindle Speed |
9,000 RPM |
9,000 RPM |
| Spindle Diameter |
ø30mm (25.4m/m) |
ø30mm (25.4m/m) |
| Spindle Height |
5.5" |
5.5" |
| Max. Cutter Diameter Range |
ø200mm |
ø200mm |
| Follower Wheel Diameter |
ø100mm |
ø100mm |
| Table Drive Motor |
2 HP |
2HP |
| Cutter Head Drive Motor |
7-1/2 HP x 2 |
7-1/2HP*2 |
| Net Weight (kg) |
760 kgs |
890kgs |
| Gross Weight (kg) |
960 kgs |
1,140kgs |
| Machine Size (mm) |
1,580 x 1,300 x 2,000 |
1,670*1,370*1,970m/m |
| Packing Dimensions (mm) |
1,700 x 1,480 x 2,220 |
1,790*1,550*2,220m/m |
