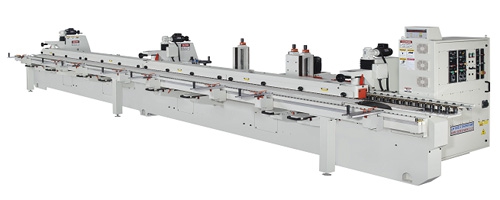

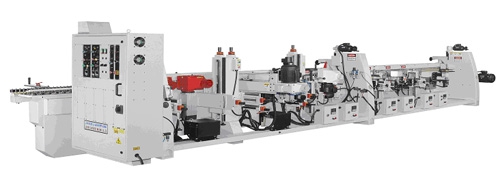

Copy shaper with sanding and heating transfer foil printing machine

Product No : LW-7000
Copy shaper with sanding and heating transfer foil printing machine
  • Copy shaper with sanding and heating transfer foil printing machine
  • Copy shaper with sanding and heating transfer foil printing machine
Inquiry
Product Description

proimages/video.png

Product Introduction
HSD 5.5KW motor *2pcs Triangle belt left drawing: #80Type
Brush sanding left side figure Ironing Mold ( Left ) Ironing mold ( Right)
Brushing sanding right side figure Transfer printing tape
Air-pressure heating transfer printing wheel: 4 sets Restore tape
ModelLW-7000
Machine size (cm) 882*210*180cm
Feed motor 7.5HP
Feed speed 2-16M/Min
Top belt pressure belt 150mm
Pressure wheel size Diameter * length Ø50mm * 35mm
Double line adjustable base 2500*180m/m
Additional 4 sets of adjustable base and narrow panel 4sets
Triangle belt head and wheel head of sanding motor 2HP
Cutter head drive motor HSD 5.5KW*2pcs
Drive motor 2HP
Oscillating motor 25W*1/36
The adjustment of pressure base is control by electrical By electrical
The auxiliary against roller: single line Single line
The base can be vertical, horizontal and angle adjustment
  • Minimum Order : Negotiable
