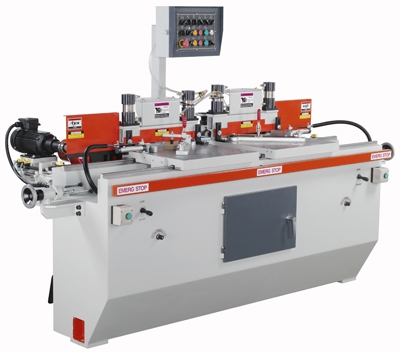

Two Sides Straight Shaper with drilling

Product No : LH-2145-LH-2145DR
Two Sides Straight Shaper with drilling
    Inquiry
    Product Description

    proimages/video.png

    Product Introduction

    PATENT NO. D127772

    The machine can process at 45 degree or at 90 degree of woodworking dovetail pieces.

    • The machine can process at 45 degree or at 90 degree of woodworking devotail pieces.
    • Stackable spindle is located at four different cutter locations. At the touch of a switch the cutter can be fixed to spindle using the upper and lower screw, thereby elimination set up time.
    • Adopt high accurate of linear guideway to ensure has exact of output products.
    ModelLH-2145LH-2145-DR
    Max. cutting length (left or right) 100" 100"
    Max. cutting length (45¢X) 100" 100"
    Max. cutting width 350mm 350mm
    Spindle under unt 4" 4"
    Max. cutter size 5" 5"
    Spindle diameter 1-1/4" 1-1/4"
    Spindle length 6" 6"
    Spindle speed 9000 rpm 900 0rpm
    Main motor 5 HP x 2 5 HP x 2; 1 HP x 2
    Dust hood diameter 5 5
    Packing size (mm) 1,160 x 1,900 x 1,900 1,160 x 2,320 x 1,900
    With drilling No Yes
    • Minimum Order : Negotiable
    • Branded Product, Buyer's Label Offered
    • TEL: 886-4-25284431 / 886-4-25204443 / 886-4-25235406
    • FAX: 886-4-25289411 / 886-4-25273423
